The Smart Shell.
A flat-packed building envelope. Composite panels ship flat and bolt together on site, like a kit of parts. Not a volumetric module.
Beautiful
Configure facade color, texture & finish.
Fast
Pre-assembled, multi-trade panels.
Intelligent
Sensor mesh + digital twin (LANS).
Secure
Graded ballistic-rated envelope.
Flat-packed. Not a volumetric box.
The Smart Shell ships as flat panels and bolts together on site, like a kit of parts. You get the speed of prefab without the freight penalty and layout limits of volumetric modules.

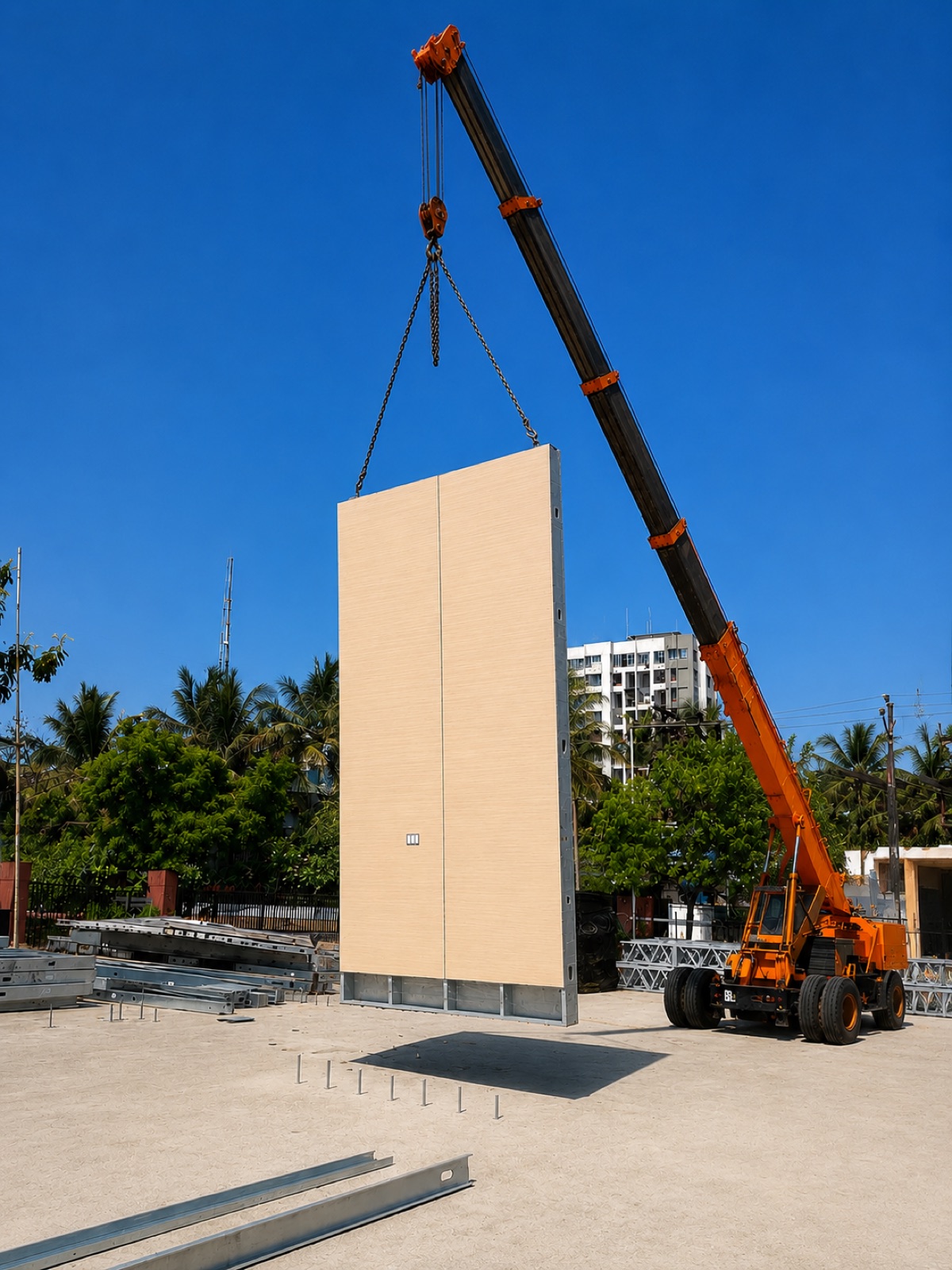

Delivered flat, lifted in
Each 5 m × 2 m panel ships flat and is craned straight onto the foundation, every trade already integrated.

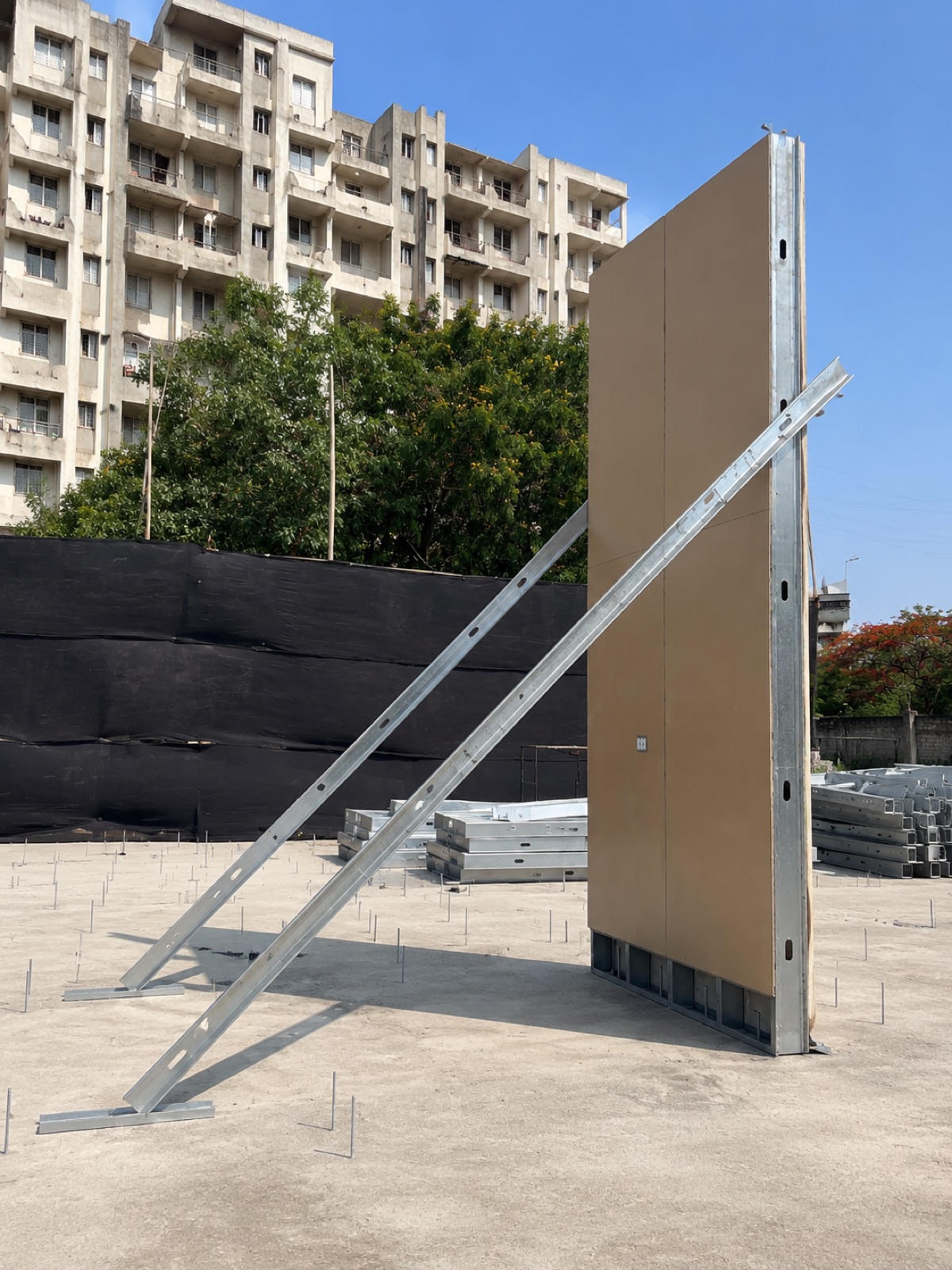

Stood up and braced
Panels seat on the anchor bolts and brace with steel shoring, aligned to ±1/8".
Capped and closed
Roof panels drop on and the bay closes. A weathertight shell in days, not months.
Flat-pack vs. volumetric modules
Every trade, pre-assembled into one repeatable panel.

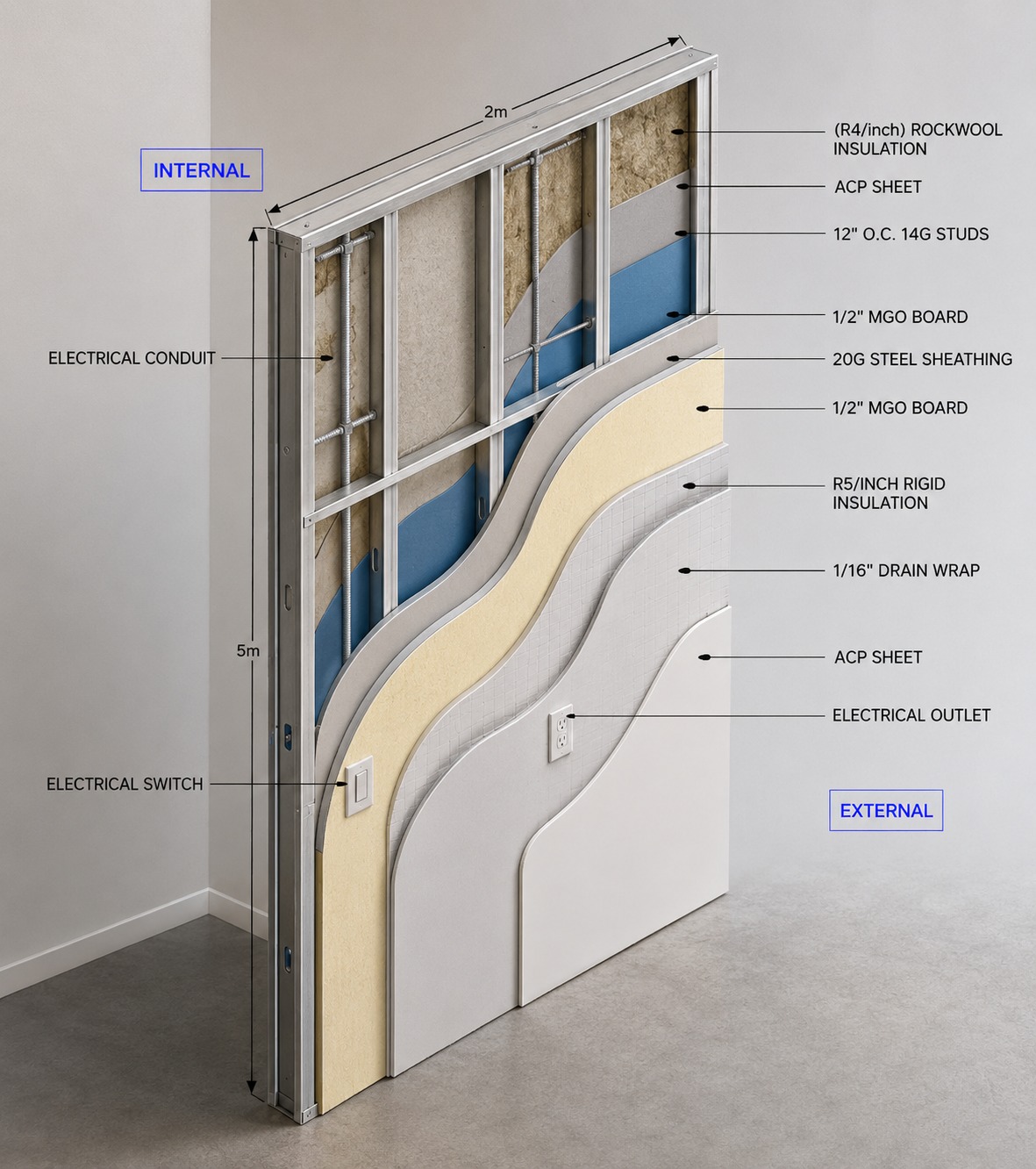

Standard panels are 5 m × 2 m, with 7 m × 2 m and 8 m × 2 m available. Each carries structure, insulation, fire-rated sheathing, services, and cladding. Closed-wall and finish-ready, straight off the truck.
Configure the facade without touching structural performance.
Diverse palette
- Metallic finishes: silver, bronze, copper
- Earth tones & natural hues
- Custom color matching
Texture variations
- Smooth matte & gloss
- Textured & embossed patterns
- Wood-grain & stone-look
Planning compliance
- Zoning & code requirements
- Design consultation
- Renderings for visualization
A sensor mesh, embedded in the envelope: the AI Factory nervous system.
Factory-embedded IoT mesh and digital twin, built into every Smart Shell. No retrofitting. Native Metasys & DCIM integration.
Structural health
- Load, stress & deflection
- Early failure detection
Vibration
- Seismic tracking
- Machinery fault detection
- Intrusion alerts
Environmental
- Temperature
- Humidity
- Airflow analysis
Breach & security
- Impact detection
- Penetration alerts
- Perimeter
Thermal mapping
- Heat-loss detection
- Insulation-gap ID
Cloud dashboard
- Live visualization
- API-ready
- BMS / DCIM
A hardened envelope, graded to the threat.
Ballistic-rated, fragment-resistant construction with sensorized intrusion detection. Specified to the protection level your site demands.
No ballistic layers
ThreatNo ballistic protection; the UL 752 armor layers are omitted entirely.
Typical useStandard commercial sites with no defined threat
Standard commercial
ThreatHandgun and intermediate rifle
Typical useFinancial, enterprise compute, urban sites
Enhanced critical infrastructure
ThreatHigh-velocity rifle and armor-piercing
Typical useNational AI, defense-adjacent, high-risk sites
Maximum defense-grade
ThreatExtreme threats, including heavy weapons
Typical useStrategic hubs, mission-critical defense
Engineered to the worst case, anywhere on Earth.
Every shell is designed to the governing hazard for its site and mapped to local code, from Miami-Dade to Eurocode to GB and AIJ.
195 MPH
Hurricane / Typhoon / Cyclone
- Miami-Dade HVHZ
- FBC 2023
- ASCE 7-22 Risk Cat IV
- TAS 201/202/203
- AS/NZS 1170.2 Reg D
- EN 1991-1-4
EF5, 250 MPH
Tornado
- ICC 500-2020 community shelter
- FEMA P-361 safe-room methodology
- 250 MPH = max ever recorded on Earth
Any site
Seismic
- ASCE 7-22 SDC A–E
- Eurocode 8 (EN 1998)
- GB 50011 (China)
- AIJ (Japan)
- NZS 1170.5
- Importance Factor Ie = 1.5
Type II-B, 1/2/4-hr
Fire
- Type II-B noncombustible shell
- 1, 2 & 4-hr UL 263 / ASTM E119 assemblies
- NFPA 13 sprinkler
- NFPA 2001 Novec
- NFPA 855 BESS by default
- ISO 834, BS 476, AS 1530.4, GB/T 9978
Coverage mapped per site by LIVIO Grid site engineering.
The shell, by the numbers.
Finish-ready space, on day one.

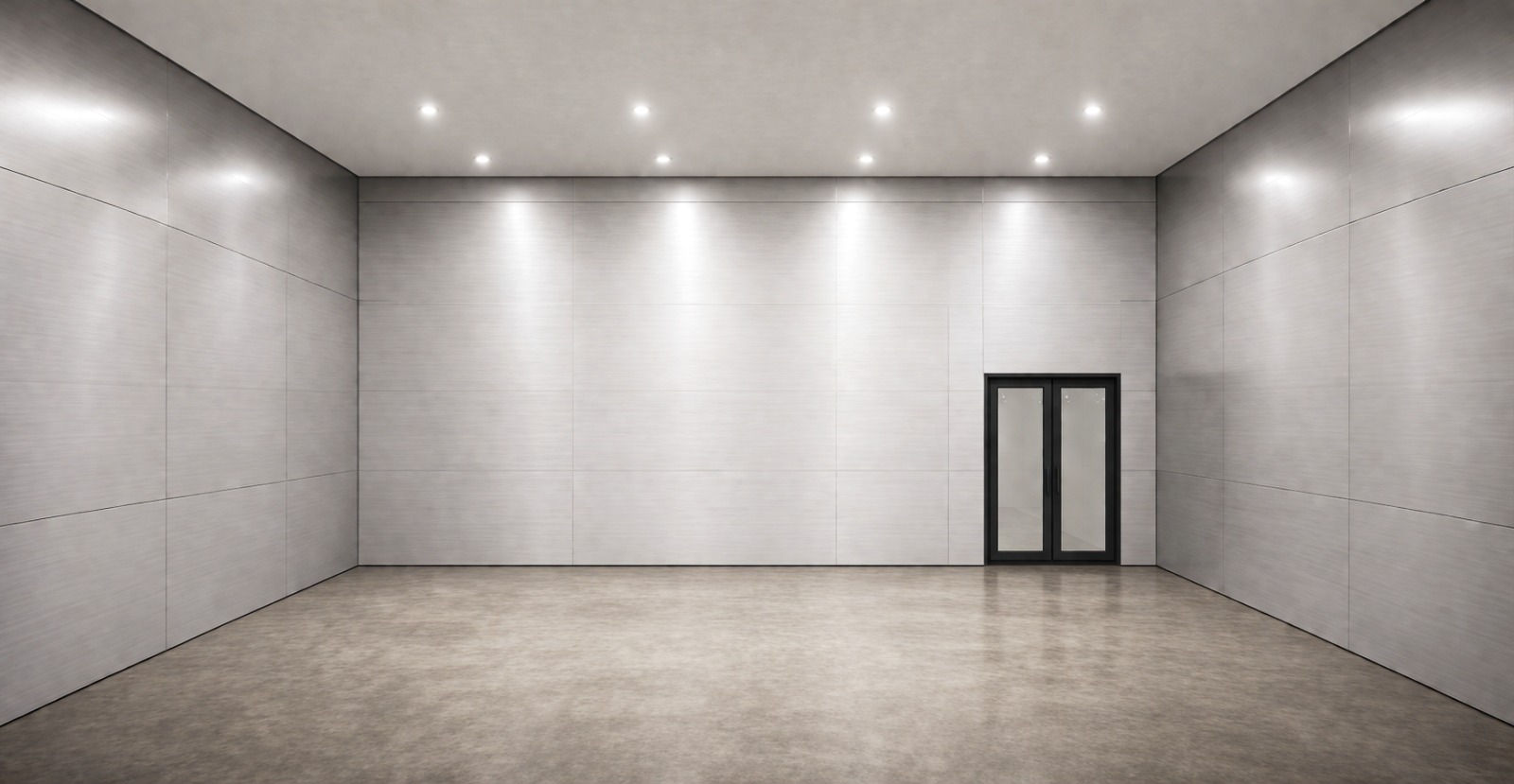

Main floor space
Expansive interior white space, ready for equipment deployment.

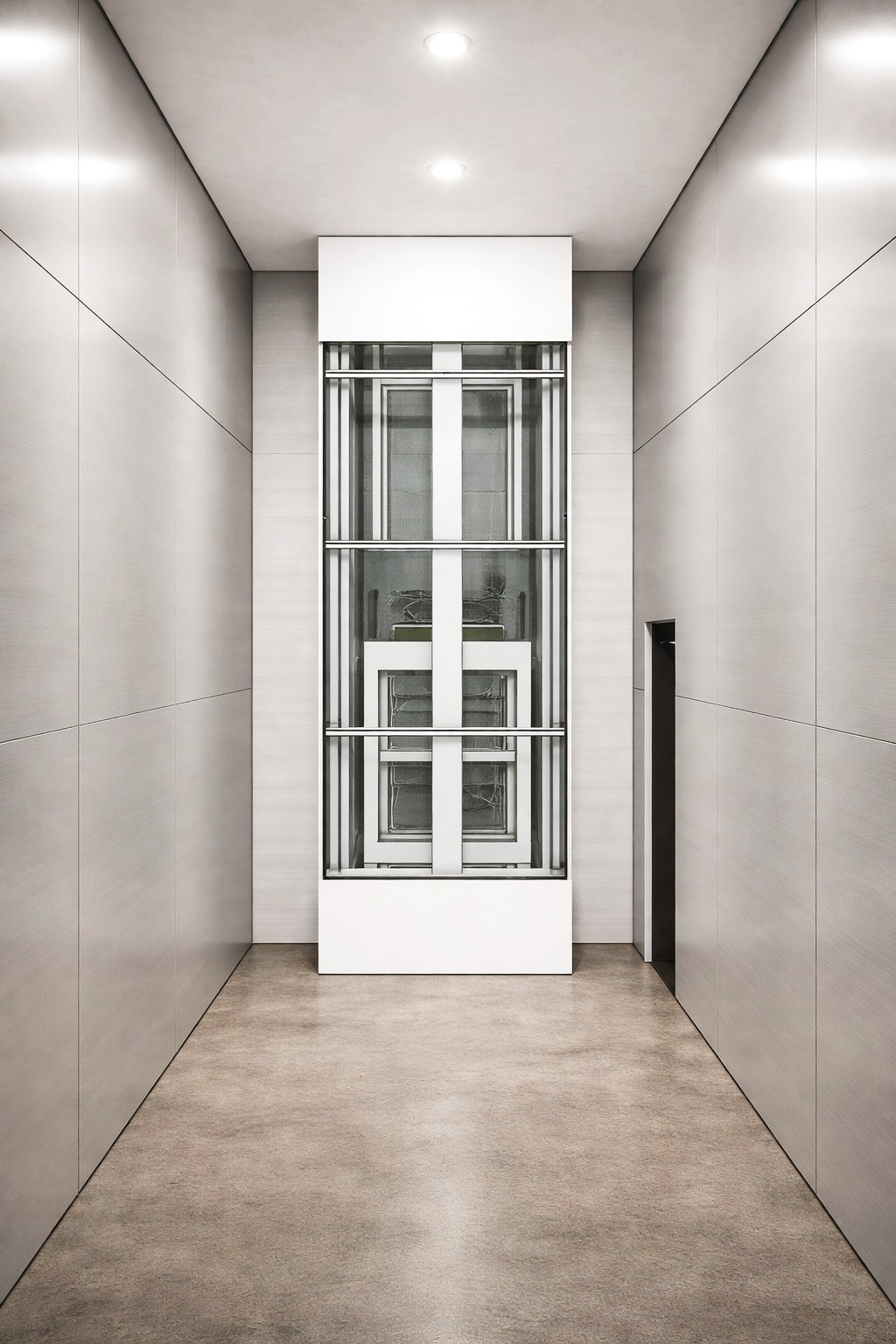

Access & circulation
Vertical access systems and circulation corridors.

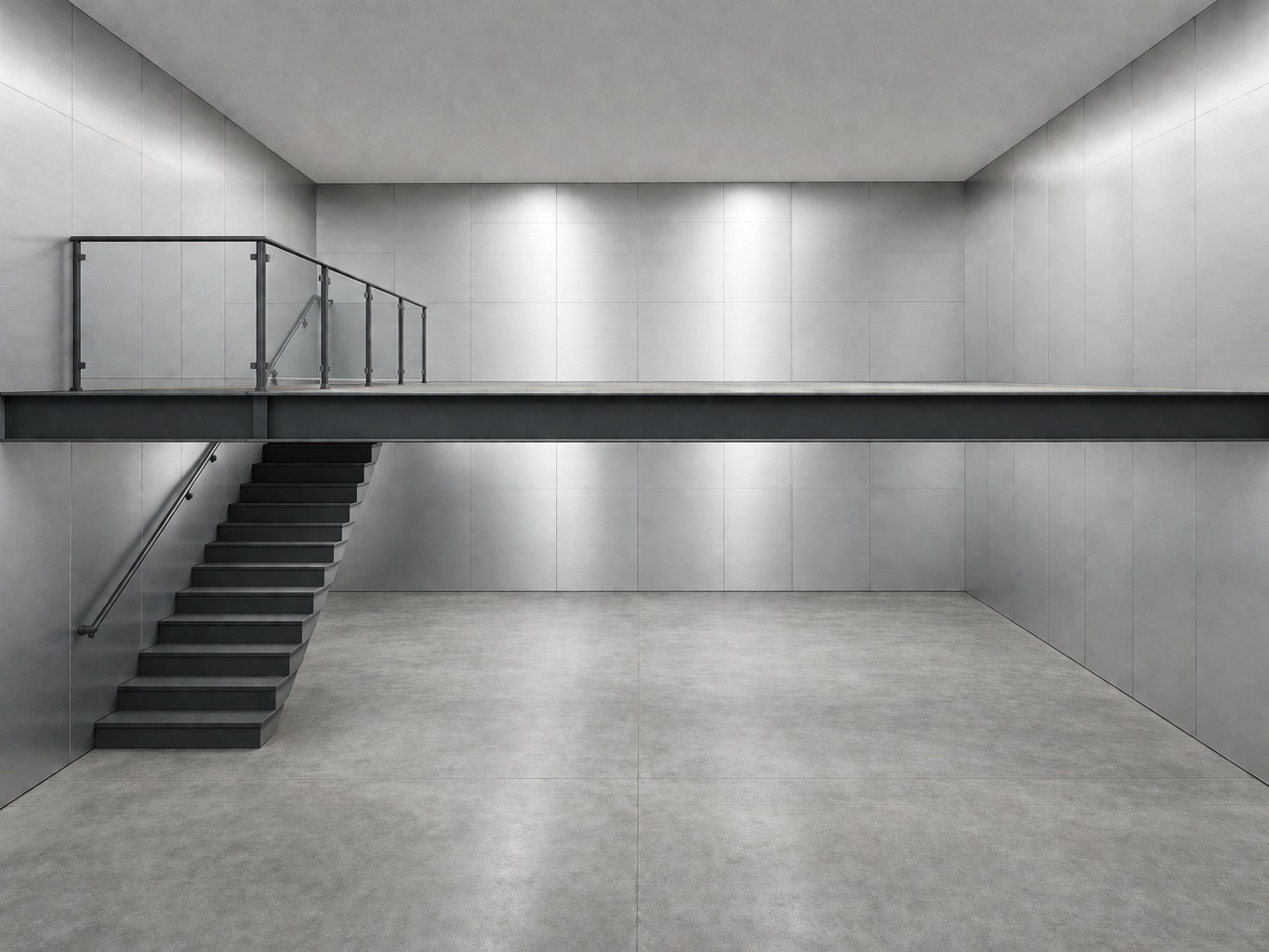

Main & mezzanine floor
Sustainable facility design integrated with the landscape.
